LANCASHIRE CRICKET CLUB SPORTING FACILITY

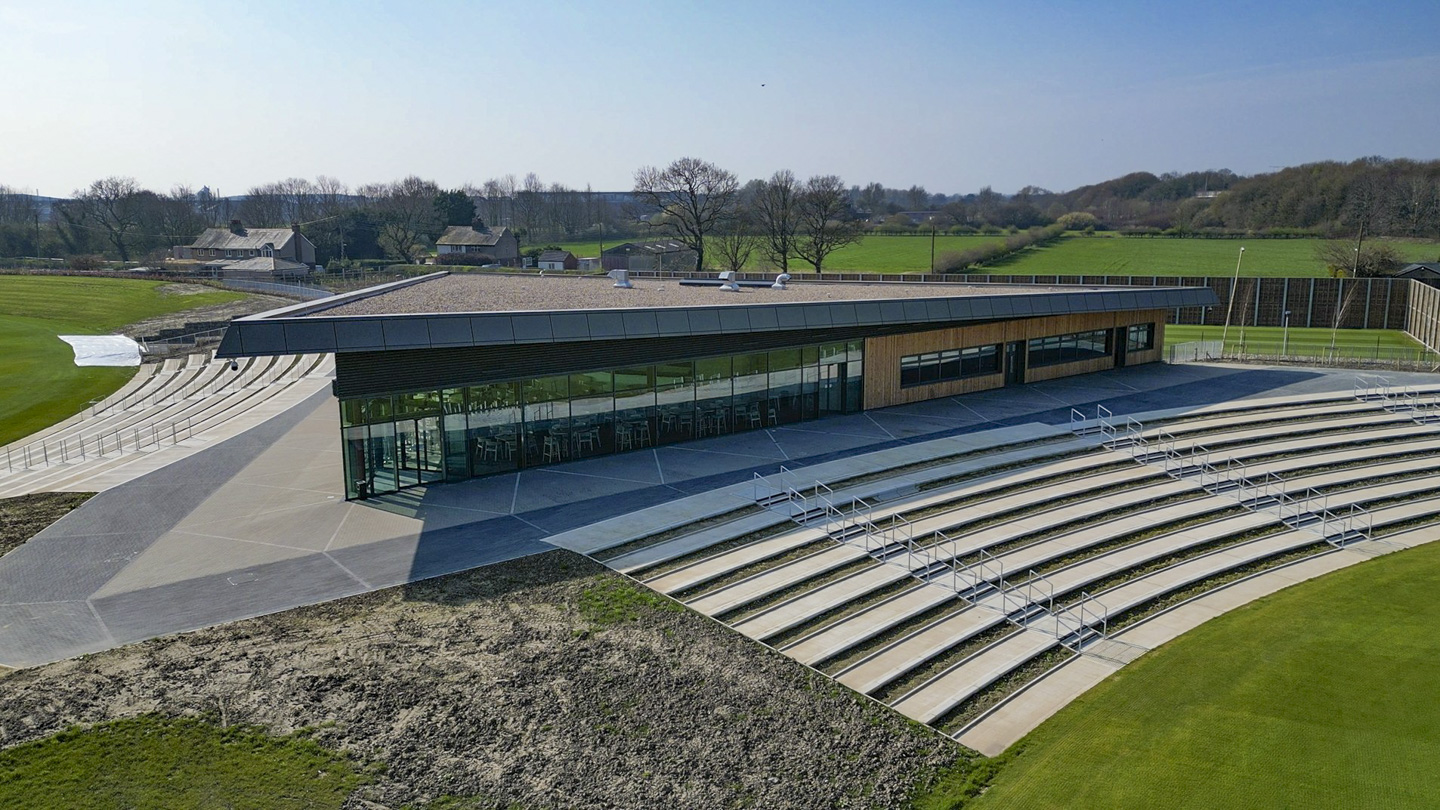

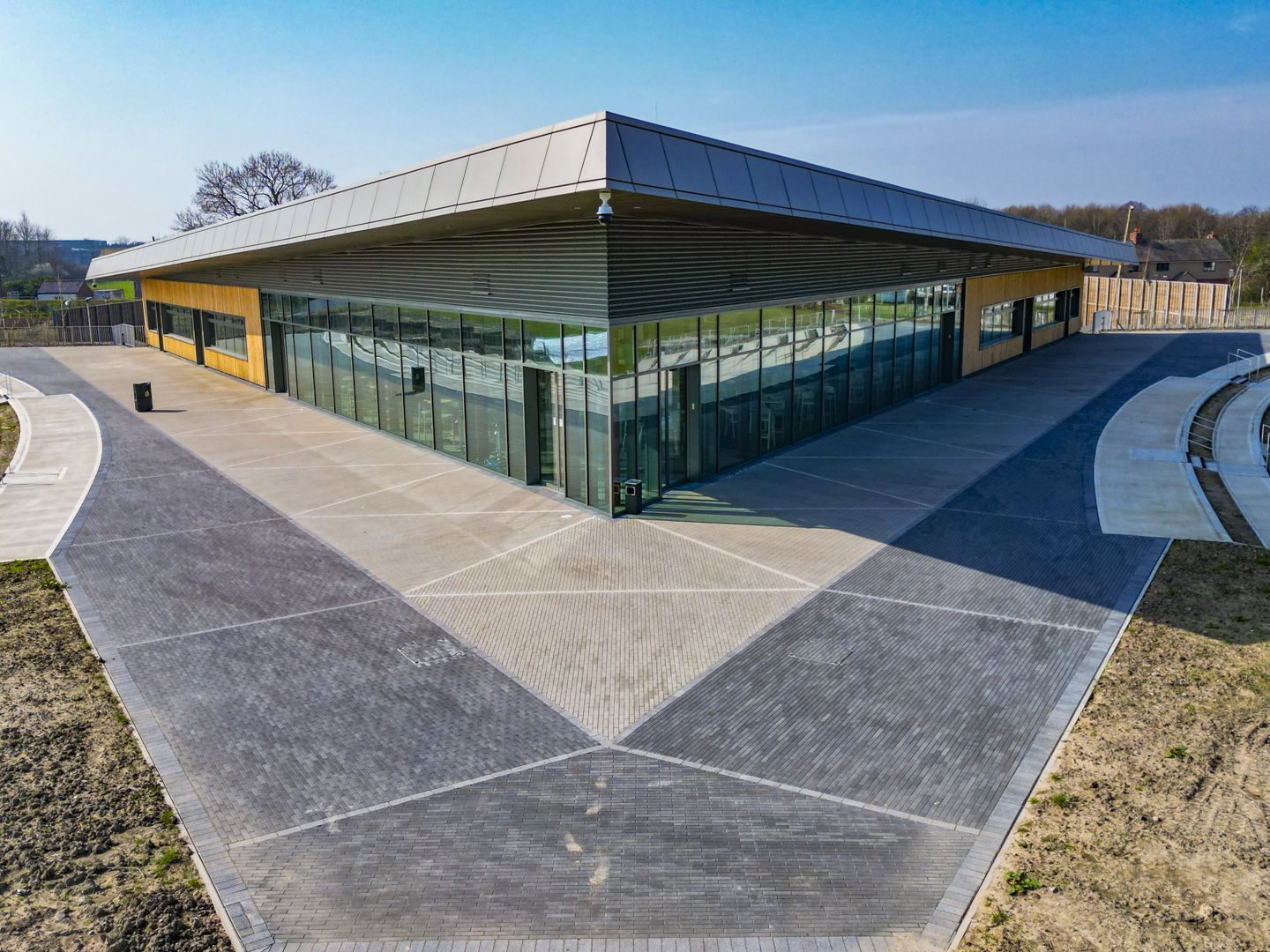

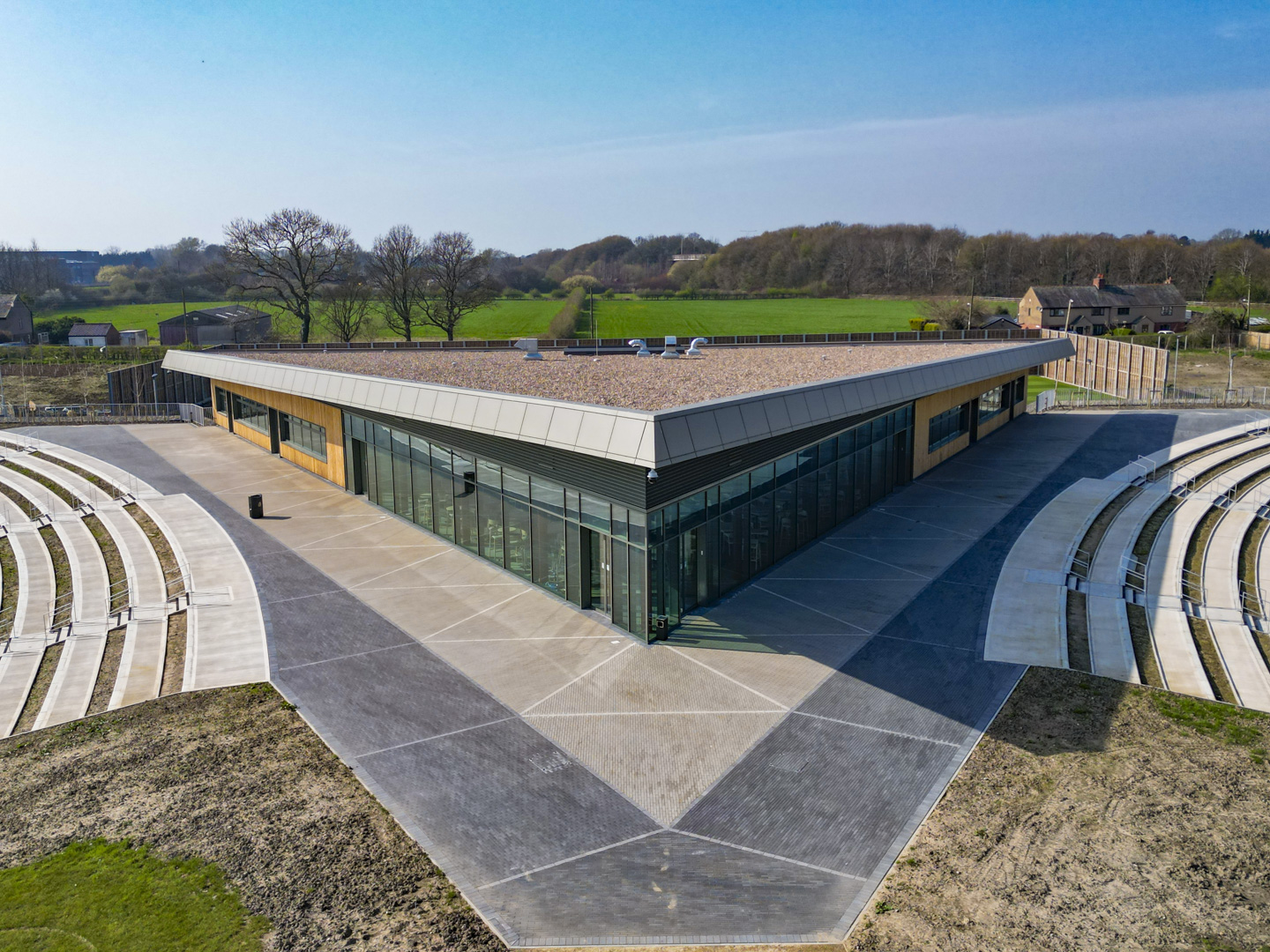

The LCC Farington facility is a modern, dual-purpose cricket facility combining professional-level infrastructure with community access. The eye-catching pavilion building with it’s sharp angles has been constructed with an emphasis on sustainability.

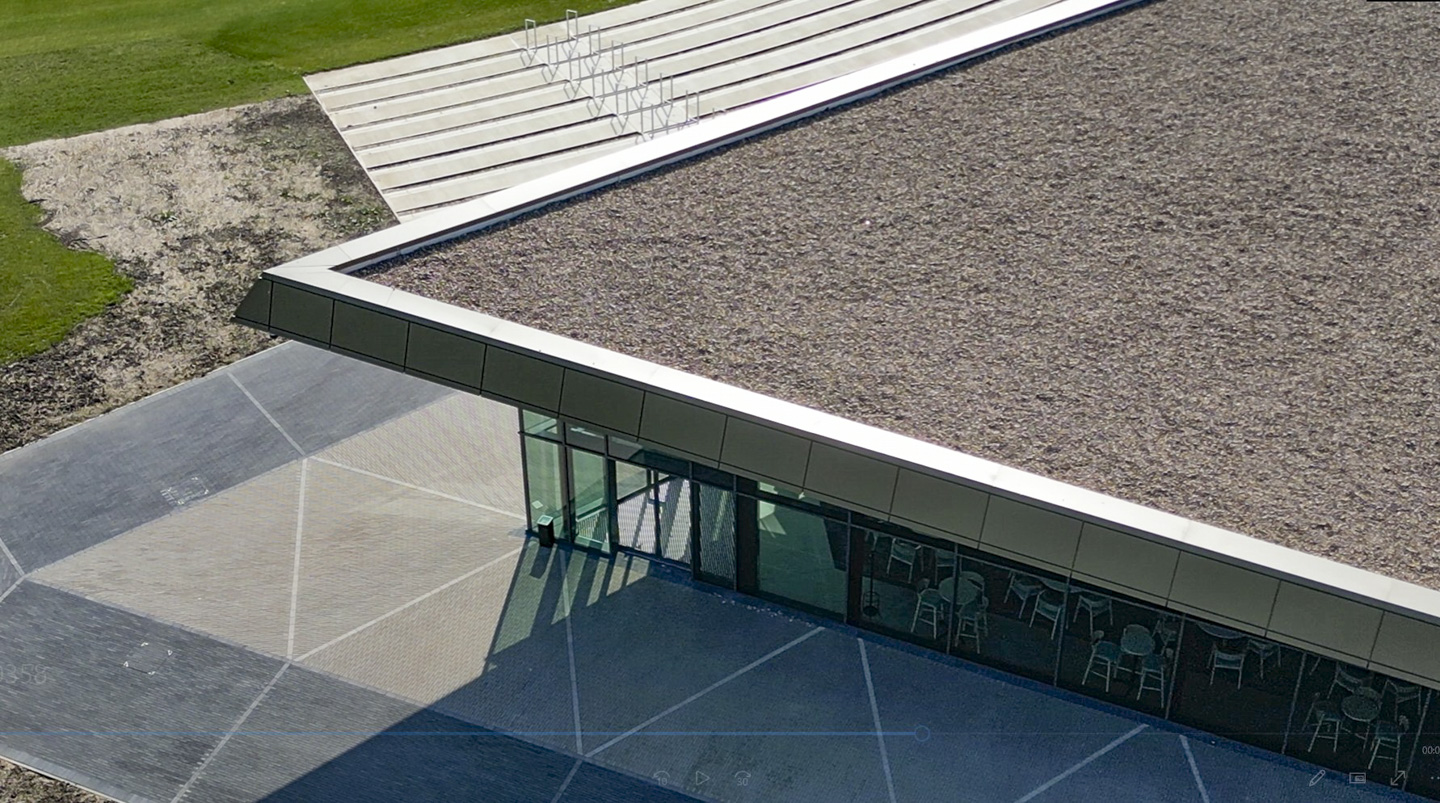

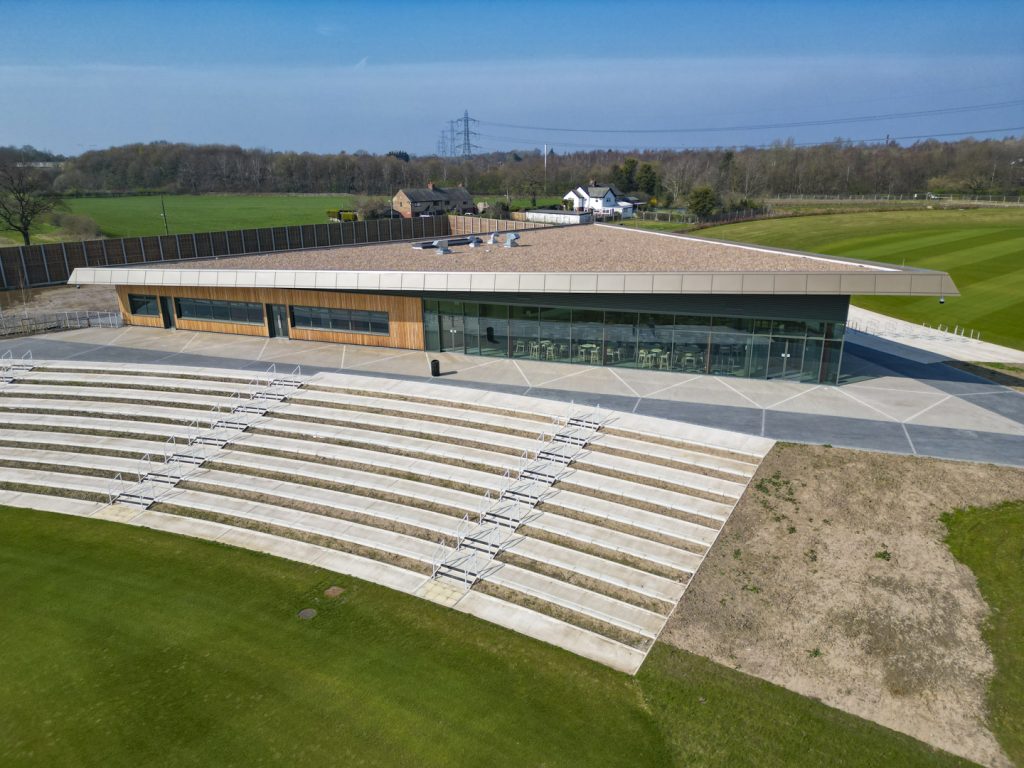

The triangular roof is constructed using a Sika SikaShield RBM Inverted Roofing System comprising ballast and paving, along with 165mm of insulation to achieve a U Value of 0.18.  A 6.5m Brett Martin Glass Link Modular Rooflight was added to provide natural internal light.

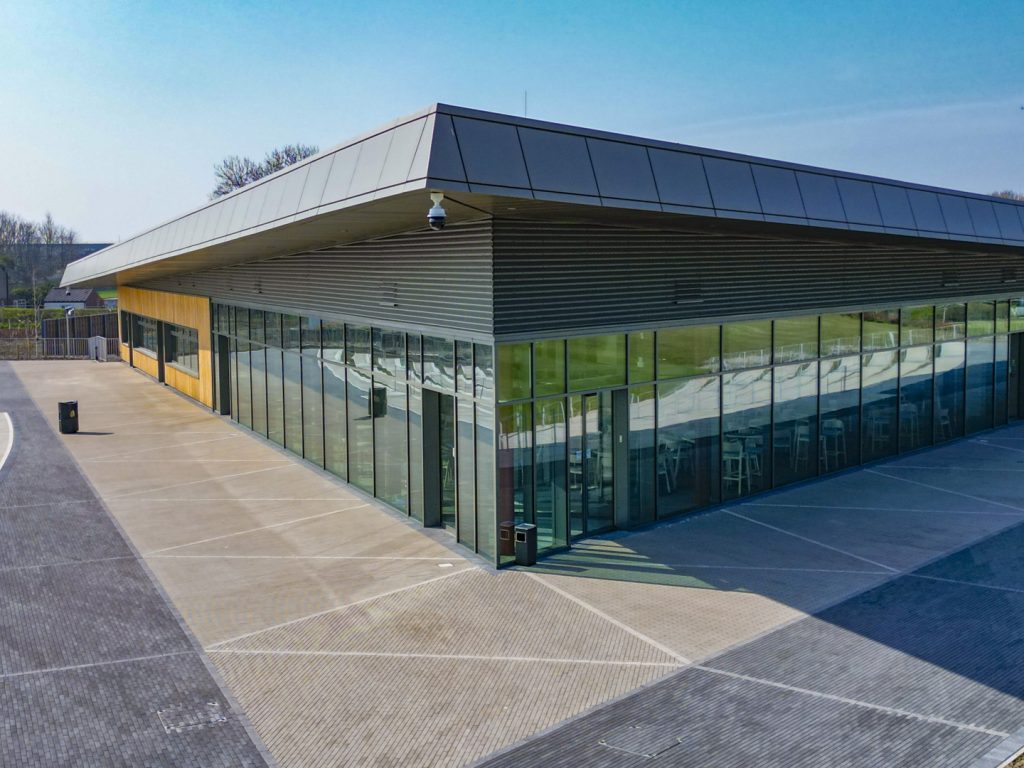

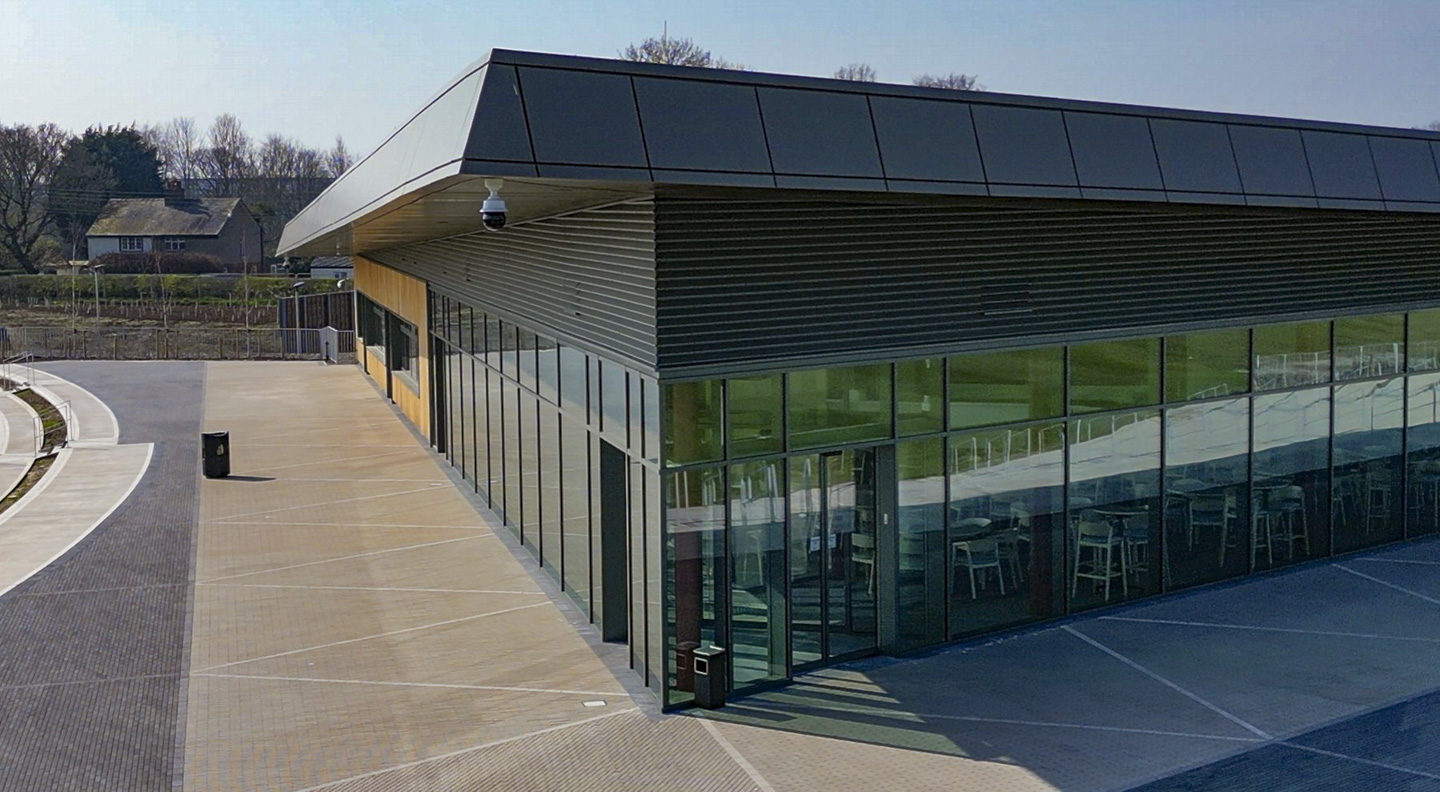

Soffit’s were installed using APL Slimwall CPS/SSF in a modern SuprAnodic Bronze power coat.

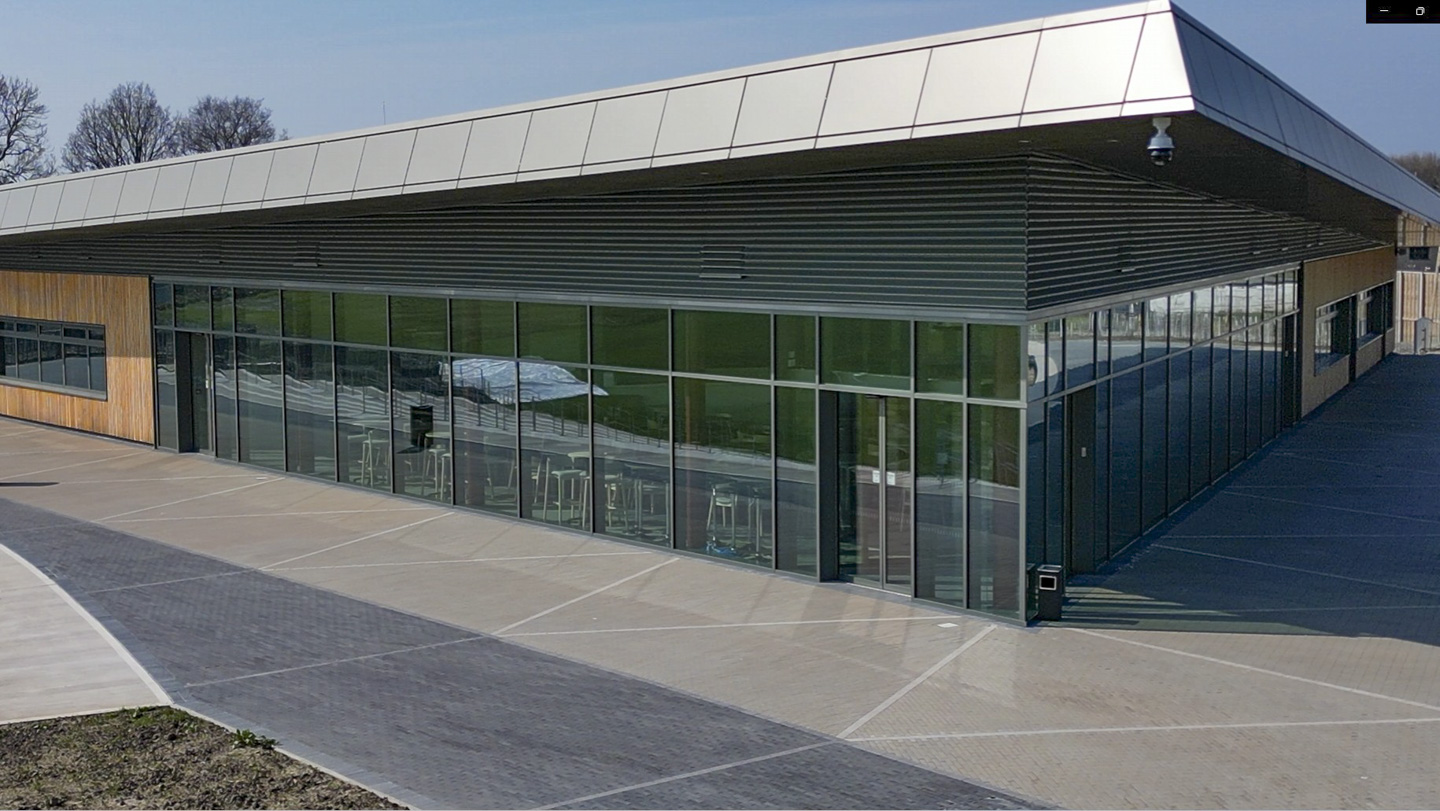

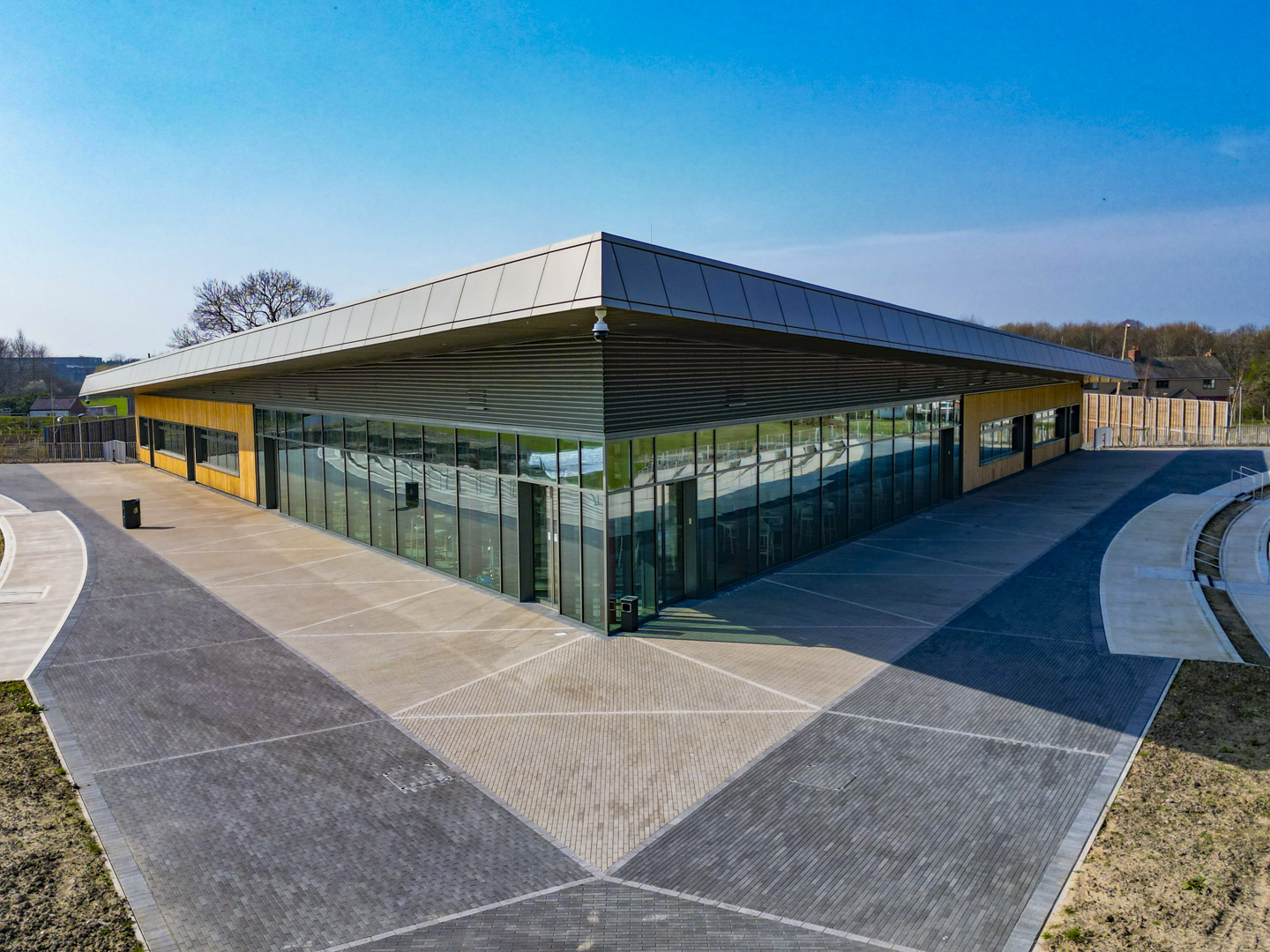

The walls are clad with 75mm x 25mm thick Canadian Douglas Fir Vertical Boarded Timber Cladding, and aluminium architectural louvre to give a striking aesthetic.  150mm K-ROC Karrier Panel insulation is used to achieve a 0.12 U Value for exceptional energy efficiency.

Features

Wall Cladding

Wall Panels

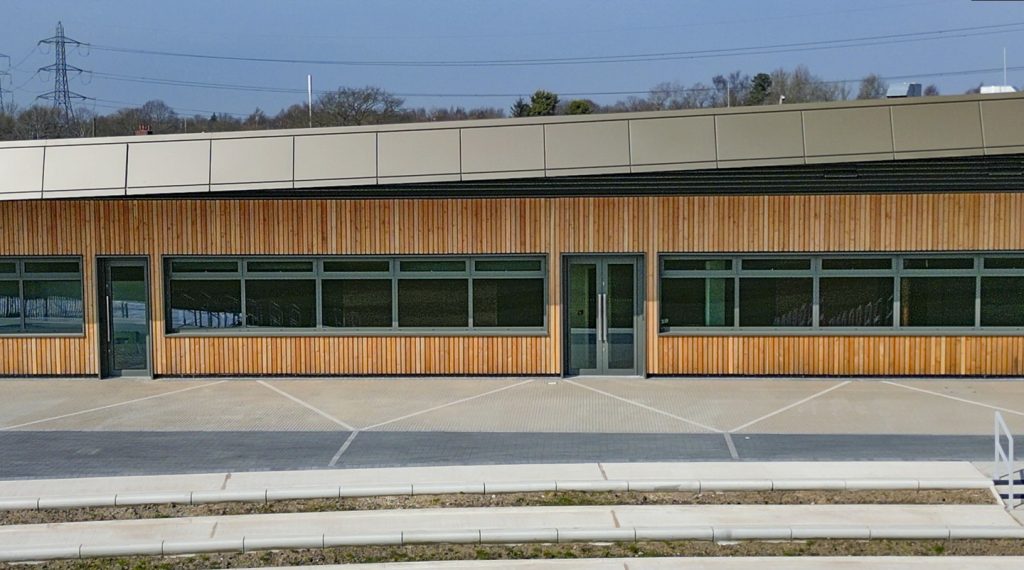

Timber Cladding Specification – 75mm x 25mm thick Canadian Douglas Fir Vertical Boarded Timber Cladding (Non-Treated), fixed to Horizontally fixed 38x40mm Chamfered Treated Timber Battens, fixed into Subframe, fixed through  130mm thick Rockwool Rainscreen Duo Slab Insulation and Breather Membrane, into SFS Stud Framing System. All associated flashings are 2mm thick Polyester Powder Coated Aluminium.

Louvre Cladding Specification – AP70LCP aluminium, colour/finish: class 2 60 micron PPC-RAL 7010 Tarpaulin Grey, 25mm PYROSORB c/w insect mesh connect to architectural louver.

Backing Panel Specification – Kingspan K-ROC Karrier Panel, Spectrum (Basalt RAL 7012) Coated Steel Outer Sheet, Bright White Coated Steel Liner, 150mm thick stonewool Insulation Core to achieve 0.12 U Value.  All associated flashings are 0.7mm thick Plastisol Coated Steel.

Roof Cladding

Roofing System

Flat Roofing Specification – Sika SikaShield RBM Inverted Roofing System, comprising Ballast & Paving, SikaRoof Water-Infiltration Reduction, 165mm thick Sikatherm EPS 200 031 RJ1 Inverted Insulation to achieve 0.18 U Value, SikaShield  B79 MG (Grey Mineral) 4mm thick Torch Applied Cap Sheet,SikaShield E74 PA SA 3mm thick Self Adhesive Underlay, on 25mm thick Marine Grade Overlay, to Tata Steel D159 1.25mm thick Enamel (Bright White) Coated Steel Structural Deck (25 Year Guarantee).

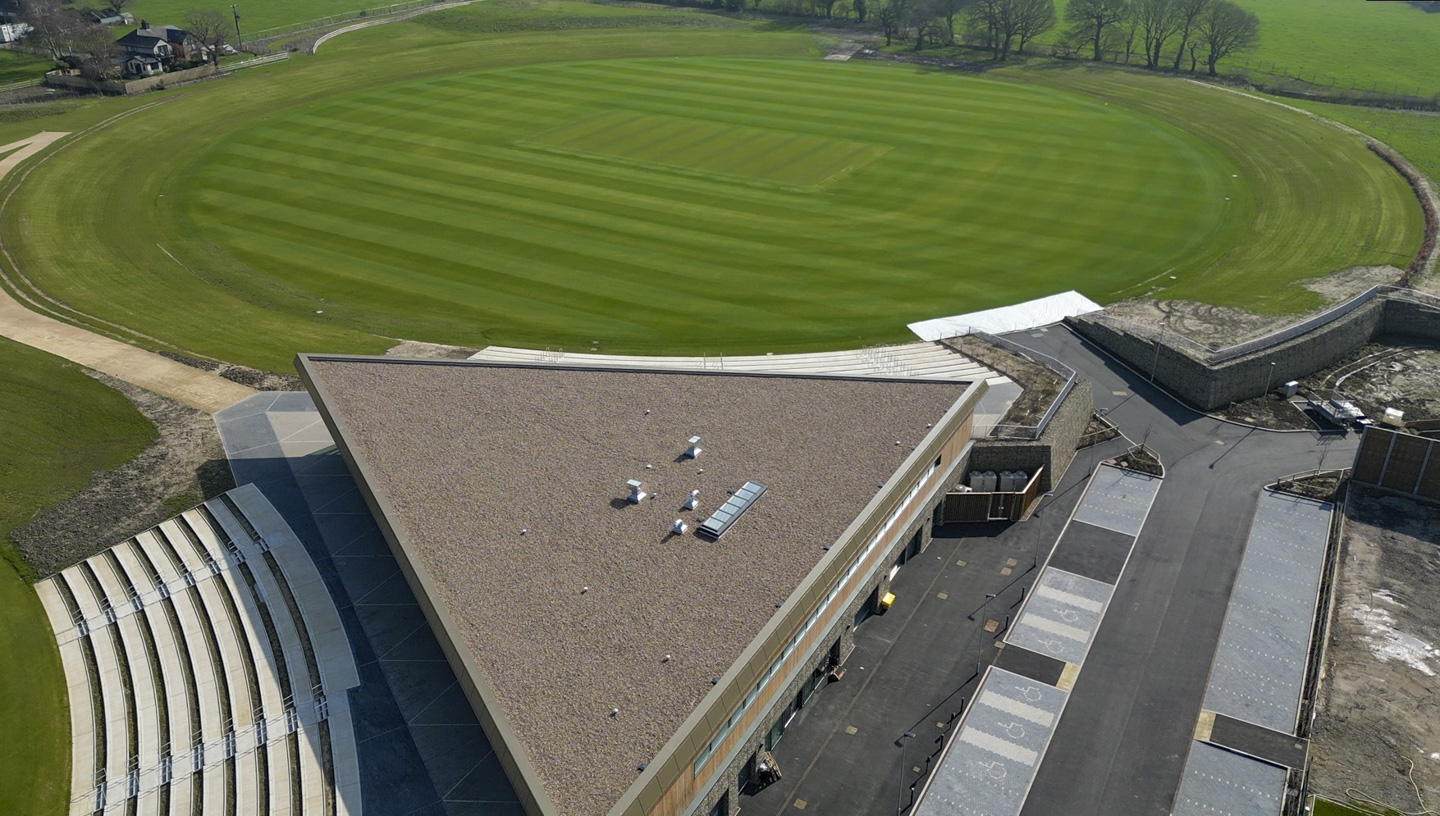

Rooflight Specification – Brett Martin Glass Link Modular Rooflight, 1 run Glass Link 6500mm long x 1580mm wide, comprising 3 modules 2150mm wide, with Standard Dual Colour Frame (Anthracite), Glazed with 3Glass Panes per Module, Clear Glass, comprising 6mm Toughened Outer, 14mm Argon Filled Cavity, 9.5mm Lamited Inner, to achieve Ur Value Ur-Value 1.9 W/m2K / Ud-Value 1.37 W/m2K.

Fascia Cladding Specification – APL Slimwall CPS/SSF, 3mm thick Polyester Powder Coated (SuprAnodic Bronze) Fascia Flashings, concealed fixed to Subframe.
